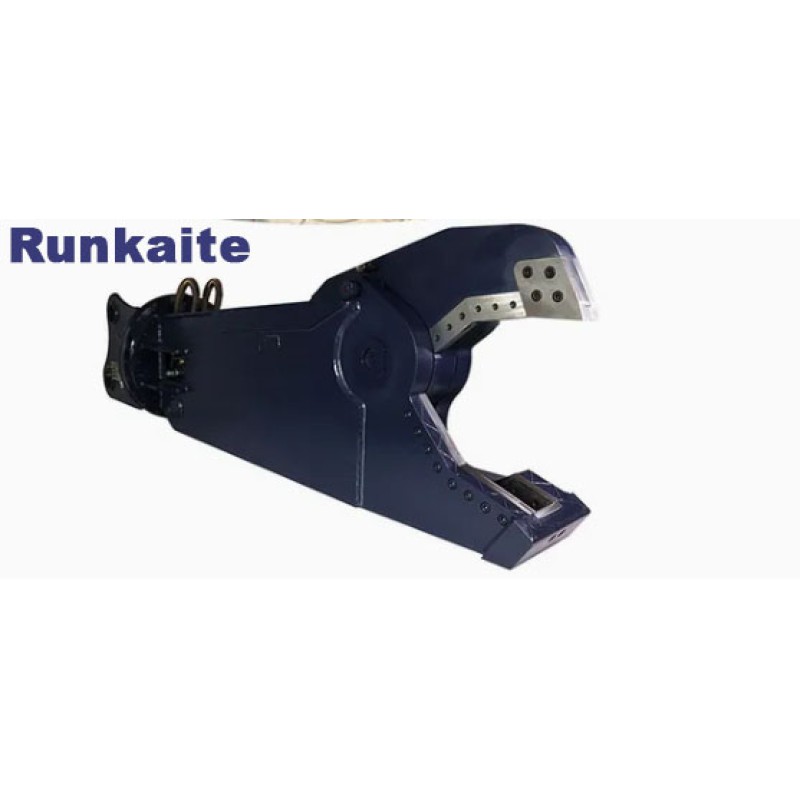

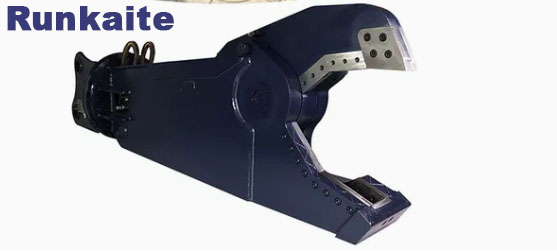

Runkaite Wms1000r -- High Power Hydraulic Metal Shear Scrap Concrete Recycling Cutting in Plate Shear Excavator Attachment for Sale
$996.42
- Brand: Beiyi
- Product Code: Wms1000r
- Availability: In Stock
Key attributes
Basic Info.
Model NO.
WMS1000R
Application
Round Steel, I-Beam, Steel Tube, Steel Plate, Angl
Power Type
Hydraulic Drive
Color
Blue & Grey
Customized
Yes
Training
Online Training
Delivery Time
35 Days
Transport Package
Wooden Box and Intermodal Container
Trademark
Runkaite
Origin
China
HS Code
8203200000
Production Capacity
300 Pieces/Year
Products Description
| Model | WMS260R | WMS360R | WMS460R | WMS610R | WMS810R | WMS1000R | |
| Information | |||||||
| Weight (kg) | 580 | 1166 | 1680 | 2522 | 3766 | 5266 | |
| Shear Tailstock Size (mm) |
Shaft EA/EB | 45-80 | 55-80 | 80-90 | 80-110 | 90-125 | -- |
| Width E | 160-225 | 170-306 | 260-400 | 300-430 | 350-490 | -- | |
| Pin Center Distance EC | 265 | 400 | 460 | 520 | 570 | -- | |
| Dimession (mm) | Length*Width*Height B*C*D | 1880*556*448 | 2459*600*716 | 2900*650*930 | 3300*800*1037 | 3725*840*1314 | 3891*900*1505 |
| Force | |||||||
| Opening A (mm) | 250 | 360 | 480 | 600 | 800 | 1030 | |
| Depth P (mm) | 252 | 392 | 485 | 557 | 636 | 875 | |
| Main Shaft Force (ton) | 300 | 388 | 799 | 1236 | 1898 | 2387 | |
| Force FA (ton) | 40 | 50 | 90 | 130 | 205 | 250 | |
| Force FB (ton) | 80 | 85 | 165 | 266 | 410 | 485 | |
| Force FC (ton) | 160 | 176 | 360 | 610 | 930 | 1200 | |
| Hydraulic | |||||||
| Cylinder Flow (L/min) | 72-102 | 72-102 | 102-201 | 151-250 | 299-504 | 602-799 | |
| Cylinder Pressure (Mpa) | 26 | 27 | 32 | 32 | 32 | 32 | |
| Rotary Flow (L/min) | 19-22 | 19-22 | 19-22 | 19-22 | 19-22 | 49-61 | |
| Rotary Pressure (Mpa) | 11.6 | 11.6 | 11.6 | 11.6 | 11.6 |
